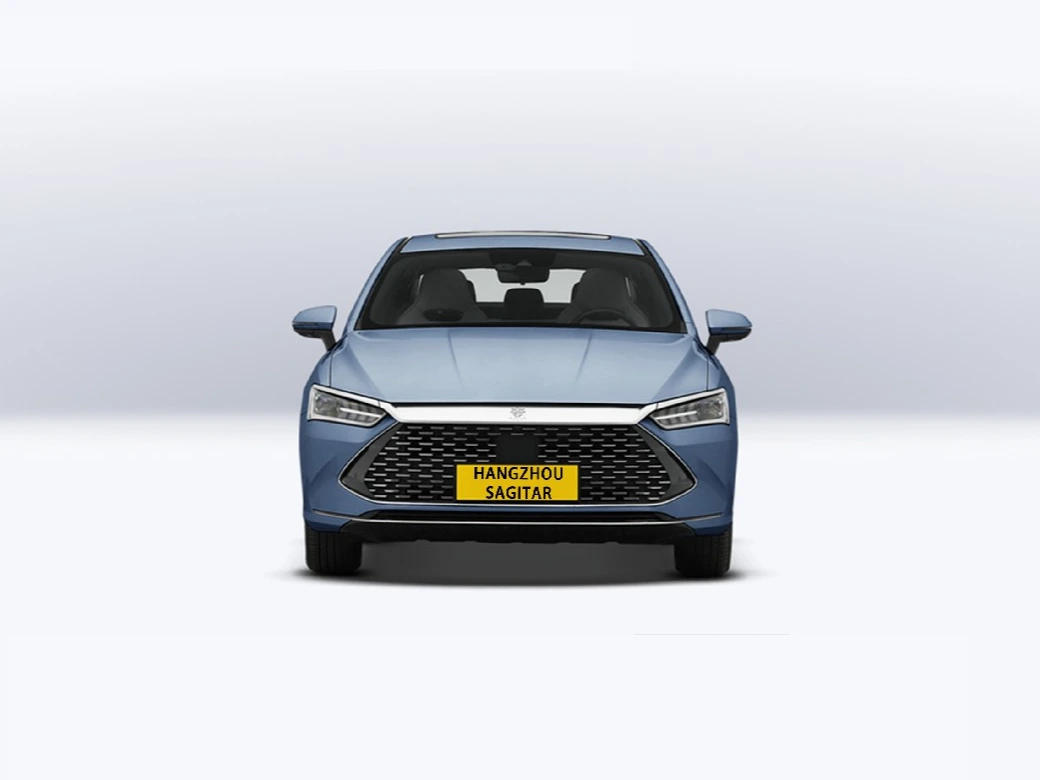

BYD Qin PLUS DM-i
Basic Information
Official Price: 79,800 CNY
Manufacturer: BYD (BYD)
Segment: Compact Car
Energy Type: Plug-in Hybrid
Launch Date: 2024.02
Engine: 1.5L 110 HP L4 PHEV
Electric Range NECD (km): 46 km
Electric Range NEDC (km): 55 km
Electric Range (km) WLTC (Electric Range WLTC): 46 km
Charging Time (hours): Slow charge: 2.52 hours
Max Engine Power(kW): 81 kW (110 PS)
Maximum Motor Power (kW): 132 kW (180 PS)
Maximum engine torque (N·m): 135 N·m
Maximum Motor Torque (N·m): 316 N·m
Basic Information
|
Transmission |
E-CVT Continuously Variable Transmission |
|
Length x Width x Height (mm) (L x W x H) |
4765 x 1837 x 1495 mm |
|
Body Structure |
4-door, 5-seat Sedan |
|
Maximum speed (km/h) |
185 km/h |
|
Official 0-100 km/h Acceleration time (s) |
7.9 s |
|
WLTC comprehensive fuel consumption (L/100km) (Fuel Consumption WLTC) |
2.17 L/100km |
|
Electric Consumption (kWh/100km) |
11.7 kWh/100km |
|
Fuel Consumption in Low Battery Mode WLTC (L/100km) |
4.6 L/100km |
|
Fuel Consumption in Low Battery Mode NEDC (L/100km) |
3.8 L/100km |
|
Vehicle warranty period (Warranty) |
6 years or 150,000 km |
Body
|
Parameter |
Details |
|
Length (mm) |
4765 mm |
|
Width (mm) |
1837 mm |
|
Height (mm) |
1495 mm |
|
Wheelbase(mm) |
2718 mm |
|
Front Track(mm) |
1580 mm |
|
Rear Track(mm) |
1590 mm |
|
Number of Doors |
4 |
|
Seating Capacity |
5 |
|
Curb Weight (kg) |
1500 kg |
|
Gross Weight |
1875 kg |
|
Fuel Tank Capacity(L) |
48 L |
|
Luggage compartment volume (L) (Cargo Space) |
500 L |
|
Minimum turning radius |
5.5 m |
Engine
|
Parameter |
Details |
|
Engine Model |
BYD472QA |
|
Displacement (mL) |
1498 mL |
|
Displacement (L) |
1.5 L |
|
Intake Type |
Naturally Aspirated |
|
Cylinder Layout |
L |
|
Number of Cylinders |
4 |
|
Valves per Cylinder |
4 |
|
Compression Ratio |
15.5 |
|
Maximum horsepower (Ps) |
110 Ps |
|
Maximum Power(kW) |
81 kW |
|
Max Power RPM |
6000 RPM |
|
Maximum torque (N·m) |
135 N·m |
|
Max Torque RPM |
4500 RPM |
|
Engine Thermal Efficiency (%) |
43.04% |
|
Fuel Type |
Plug-in Hybrid |
|
Fuel Rating |
92# |
|
Cylinder Head Material |
Aluminum Alloy |
|
Cylinder Block Material |
Aluminum Alloy |
|
Emission Standard |
China VI |
Electric Motor
|
Parameter |
Details |
|
Motor Description |
180 HP Plug-in Hybrid |
|
Motor Type |
Permanent Magnet/Synchronous |
|
Total Motor Power (kW) |
132 kW |
|
Total Motor Horsepower (Ps) |
180 Ps |
|
Total Motor Torque (N·m) |
316 N·m |
|
Front motor maximum power (kW) (Max Front Motor Power) |
132 kW |
|
Front motor maximum torque (N·m) (Max Front Motor Torque) |
316 N·m |
|
Number of Motors |
Single Motor |
|
Motor Layout |
Front-mounted |
|
Battery Type |
Lithium Iron Phosphate Battery |
|
Battery Technology |
Blade Battery |
|
Battery Cell Brand |
BYD (BYD) |
|
Battery Warranty |
First Owner: Unlimited Years/Mileage |
|
Battery Capacity (kWh) |
8.32 kWh |
|
Slow Charging Time |
2.52 hours |
Transmission
|
Parameter |
Details |
|
Transmission Type |
E-CVT Continuously Variable Transmission |
|
Number of Gears |
Continuously Variable |
Chassis/Steering
|
Parameter |
Details |
|
Drive Type |
Front-engine, Front-wheel Drive |
|
Front Suspension |
MacPherson Independent Suspension |
|
Rear Suspension |
Trailing arm torsion beam non-independent suspension (Torsion Beam Rear Suspension) |
|
Steering Type |
Electric Power Steering |
advantages
Power system: Equipped with BYD's third-generation DM-i hybrid system, including the Xiaoyun-plug-in hybrid dedicated 1.5L naturally aspirated engine and EHS electromechanical coupling unit, as well as the DM-i super hybrid dedicated blade battery, providing two pure electric endurance versions, namely 55KM and 120KM.
Intelligent configuration: Equipped with an 8.8-inch floating instrument and a 10.1-inch/12.8-inch adaptive rotating floating Pad, equipped with DiLink4.0 intelligent network system, supporting intelligent voice control, online navigation, OTA remote upgrade and other functions.
Exterior design: It adopts the "Dragon Face" design language, with an eight-sided dragon-roar front grille and dot-matrix three-dimensional chrome strip decoration.
Interior and comfort: The interior adopts a layered design, equipped with one-piece leather seats and dual-zone independent control automatic constant temperature air conditioning.
Intelligent Driving Assistance: Top-end models support ADAS intelligent driving assistance system, including full-speed adaptive cruise control, lane keeping, traffic sign recognition, etc.
